8-Function Digital Multimeter, Accurate Readings, Compact Design

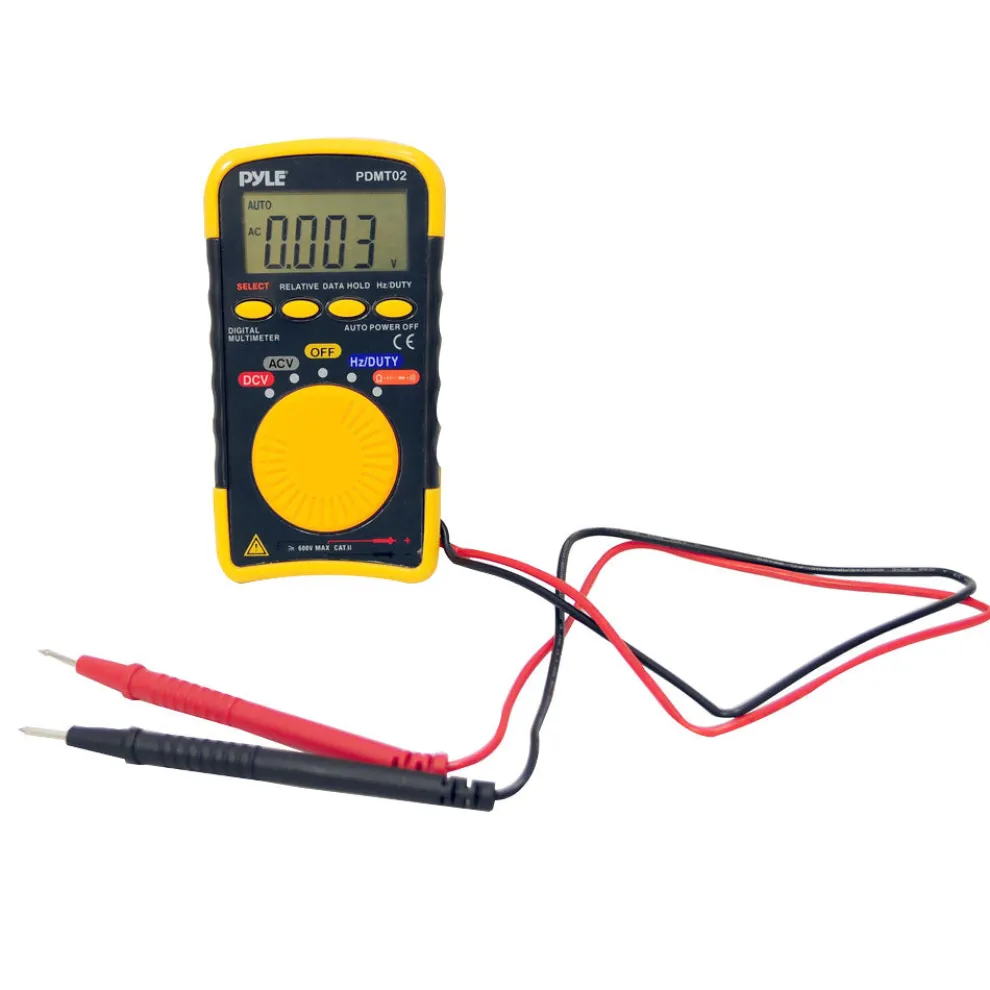

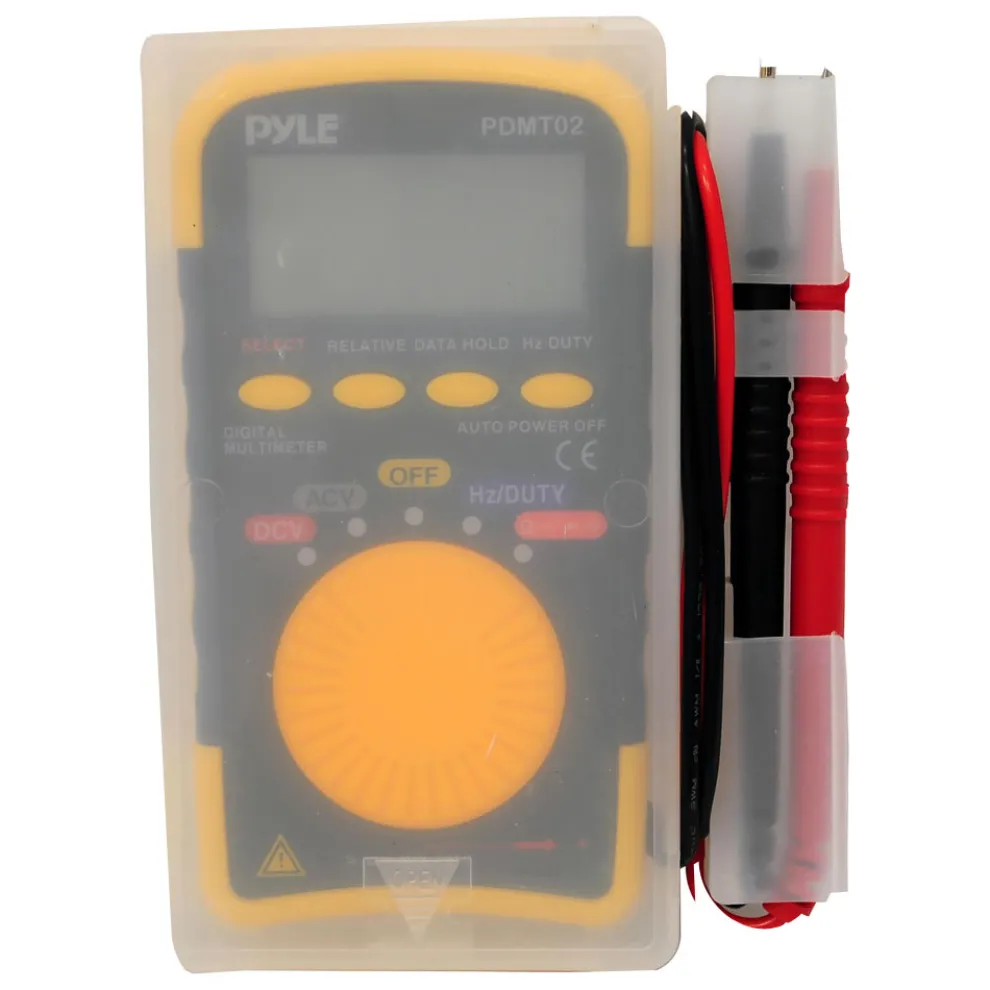

This 8-function multimeter from Pyle works well in both automotive and home electronics applications. The PDMT02 will help you diagnose and solve problems with your electrical equipment. It measures AC/DC voltage, resistance, capacitance, frequency, duty cycle, and continuity. Easily measure these data with the included test leads. When you’re all done, store it in the included wallet-style case. Also includes a CR2032 battery.

DETAILS

• Functions: DCV, ACV, Resitance, Capacitance, Frequency, Duty Cycle, Continuity
• Voltage DC: Max Range 500 V, Accuracy +/- 1.3%
• Voltage AC: Max Range 500 V, Accuracy +/- 2.3%
• Resitance: Max Range 40 MΩ, Accuracy +/- 1.0%
• Capacitance: Max Range 200 uF, Accuracy +/- 3.0%
• Continuity Test: Audible Threshold < 50 Ω
• Diode Check: Test Current 0.6 mA
• Accessories Included: Test Leads, Wallet-Style Case, CR2032 Battery
• Dimensions: 4.45” H x 2.40” W x 0.51” D
• Weight: 3.17 oz.

MANUALS & DOWNLOADS

PDMT02 – Manuals
