Wireless Mic System 160ft Range Rechargeable UHF Receiver 100 Channels

DETAILS

Features:

• UHF 2×100 Channel Receiver
• Digital Signal Processor
• High-fidelity Cartridge Module
• Infrared Carrier-frequency Synchronization
• Unique ID Address
• Super Anti-Jamming Circuit Design
• Super-low Background Noise
• Frequency Auto-Search (Search Non-Interference Frequency)
• Microphones Can be Use with Any Receiver
• Microphone High-Low Two Type Power Transmitter
• Scope of Application: Conference, High-Class KTV, Stage
• Provide with Perfect Switch Noise Deducted Circuit

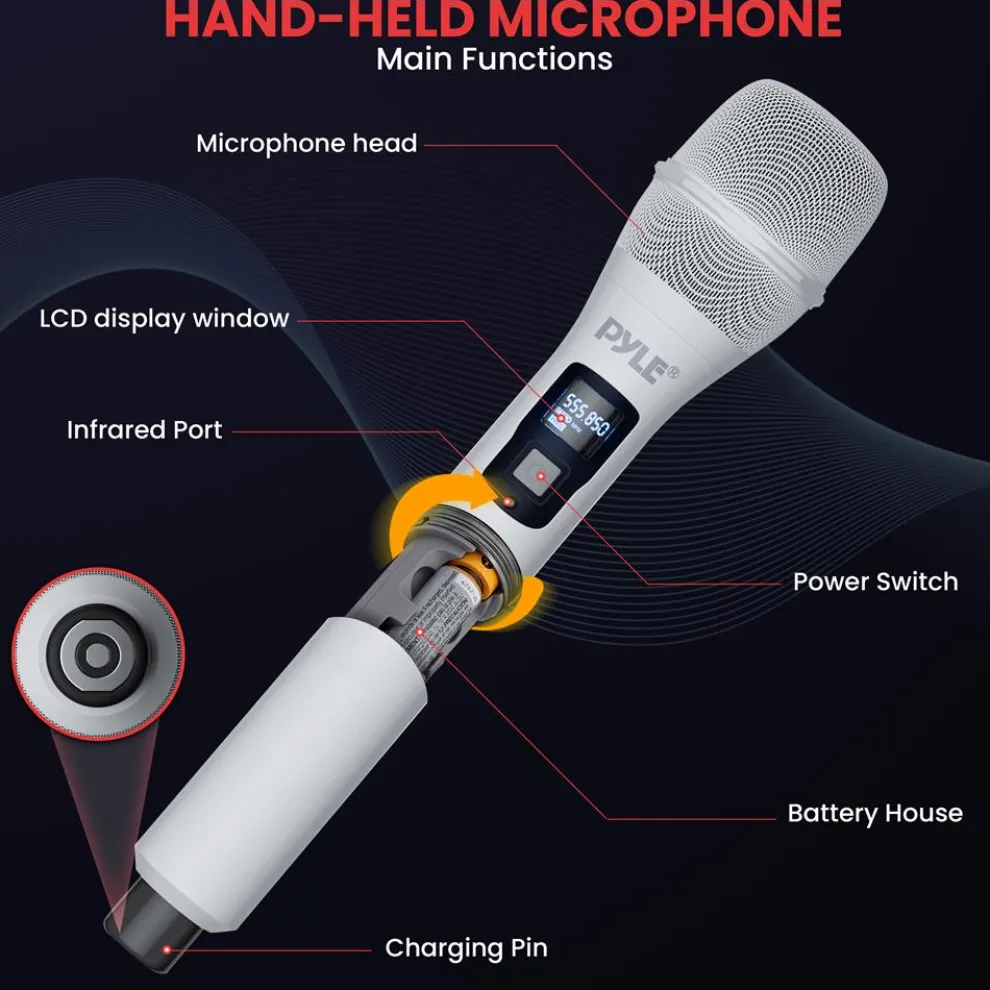

• Includes (2) Handheld Mics

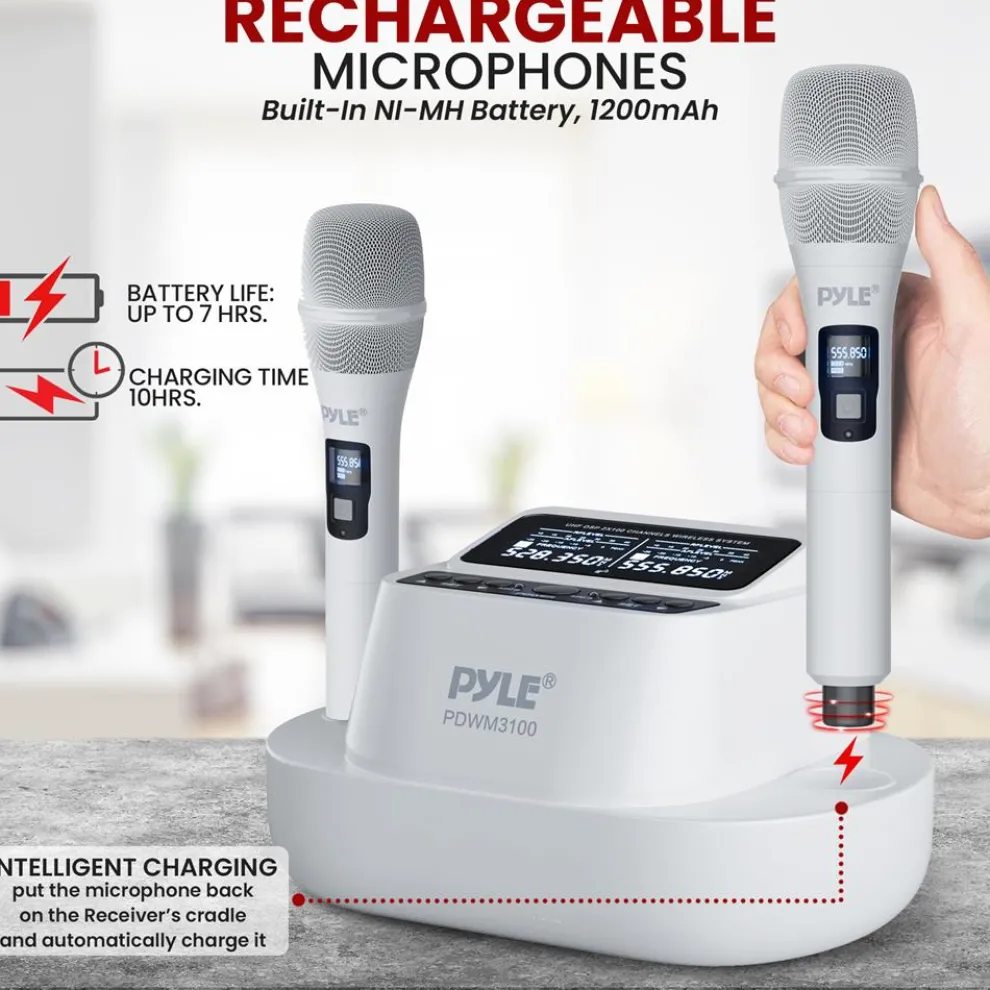

• Portable Rechargeable Battery Microphones
• Simple Plug-and-Play Operation
• Perfect for Professional Audio Stage & Studio Performances

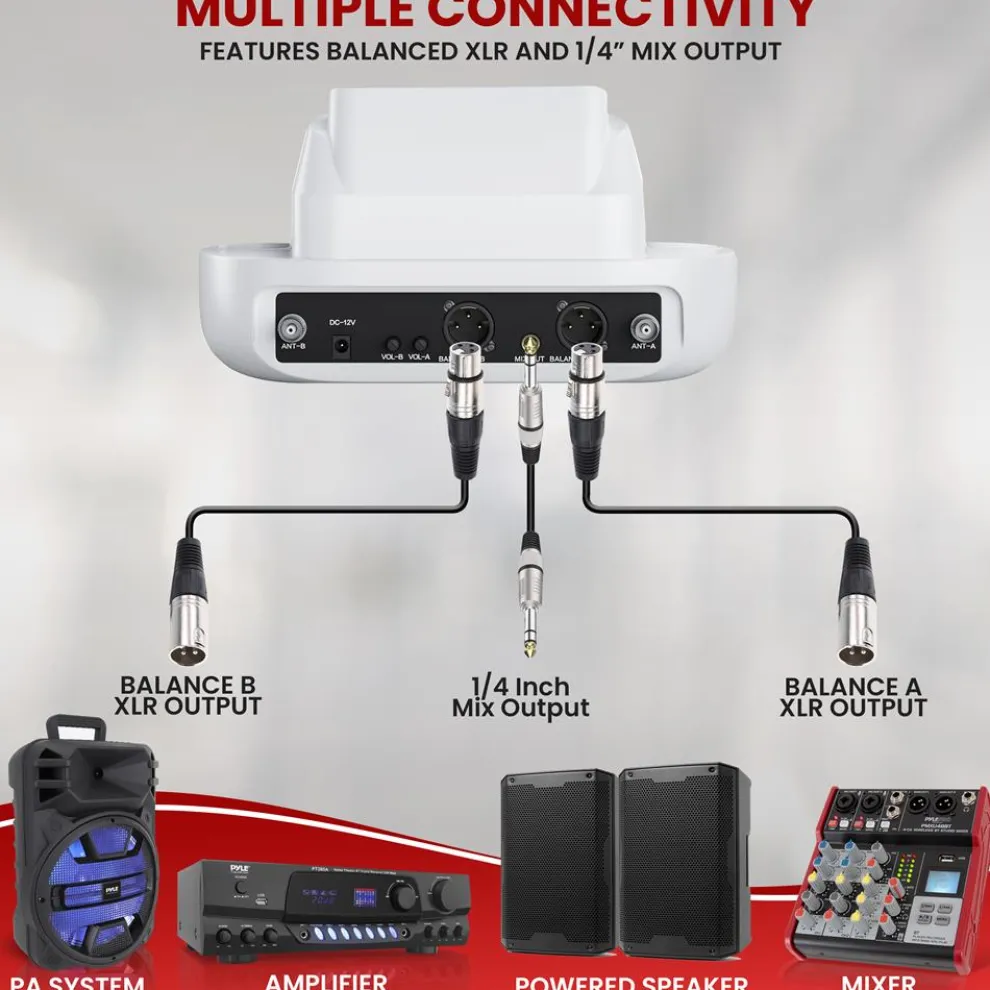

• Directly Connects to Amplifiers, Stereos, Audio Processors, DJ Mixers
• Used for Home Karaoke, Classroom, Office & Business Applications

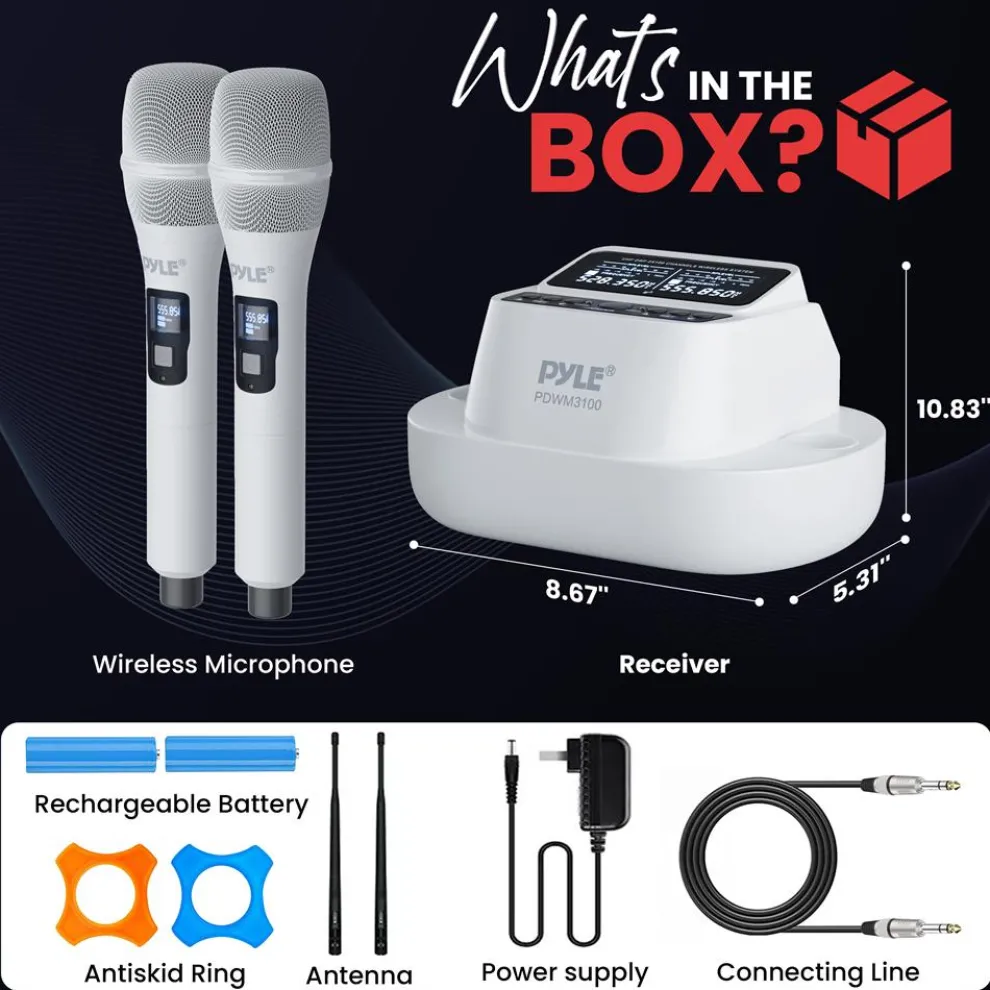

What’s in the Box:

• Receiver
• (2) Handheld Microphone
• Power Adapter (DC 12V,1A)
• Connecting Line (39.37’’ -inches)
• (4) Rechargeable Batteries (NI-MH Battery)
• (2) Silicone Antiskid
• (2) Antenna

Transmitter Specs:

• Transmitter Power: 3-8mW
• Modulation Method: FM
• Sampling Ratio: 48KHz
• Delay Time of Audio Transmission: <3ms
• Battery Voltage: AA1.5V×2

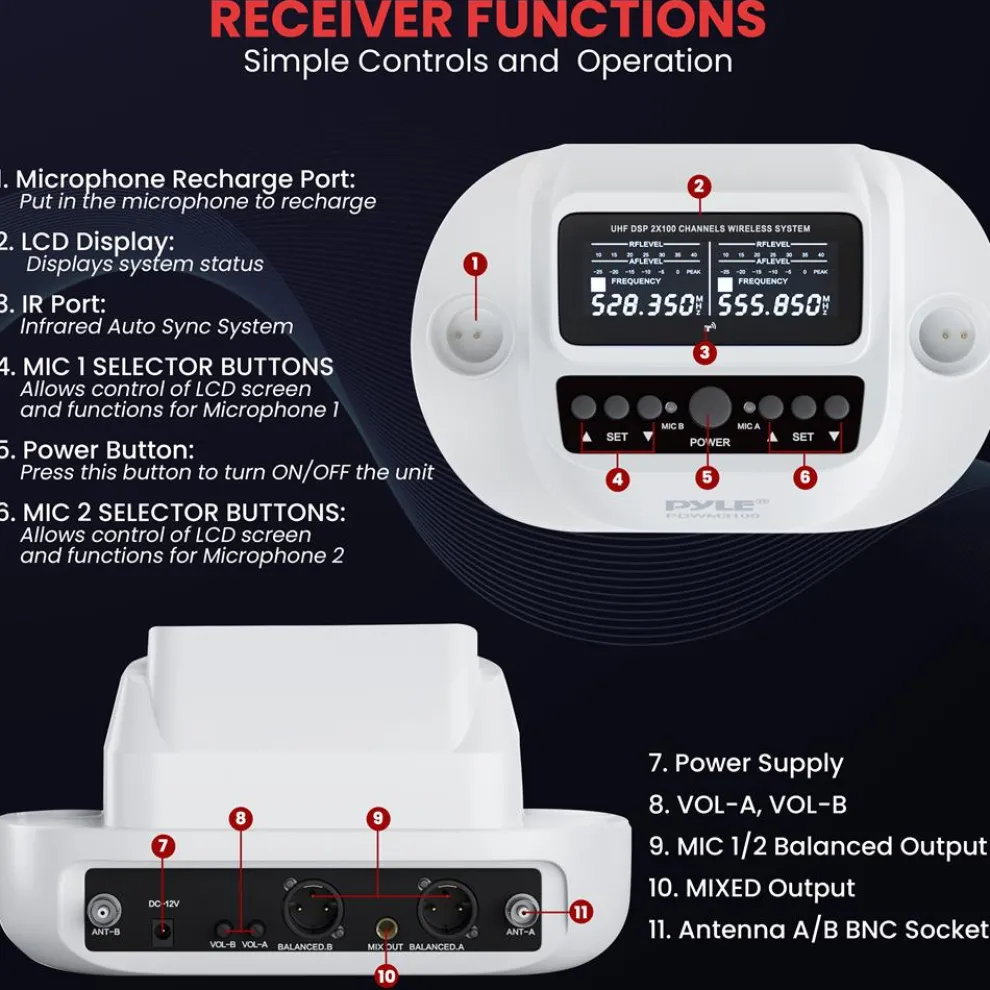

Receiver Specs:

• Power Supply: AC100~240V/ 50/60Hz, DC12v
• Power Consumption: 200mW
• S/N Ratio: >96 dB,
• RX Sensitivity: < -94dBm
• Balance Type: 0~±500mV
• Mix Type: 0~±300mV

Technical Specs:

• Channel: 2 x 100
• Frequency Stabilization: <±30ppm
• Dynamic Range: >90dB
• Total Harmonic Distortion: <0.5%
• Frequency Response: 40Hz~20KHz ±3dB
• Cover Range: 164-262 ft.
• Battery Type: NI-MH Battery, 1200mAh (Rechargeable)
• Battery Life: more than 7 Hours
• Charging Time: 10 Hours
• Product Dimensions: 8.67” x 5.31” x 10.83” -inches

What’s In The Box

What’s in the Box:

• Receiver
• (2) Handheld Microphone
• Power Adapter (DC 12V,1A)
• Connecting Line (39.37’’ -inches)
• (4) Rechargeable Batteries (NI-MH Battery)
• (2) Silicone Antiskid
• (2) Antenna

MANUALS & DOWNLOADS

PDWM3100 – Manuals
